Challenger H810ITX WiFi

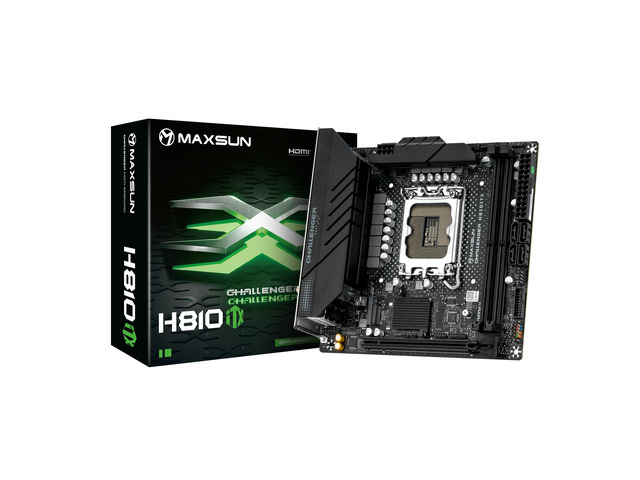

The Maxsun Challenger H810ITX WiFi is a Mini-ITX LGA1851 motherboard on the H810 chipset. It supports DDR5 memory up to 6,400 MT/s and 2 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
MaxMyBuild scores
How we score →How well the Challenger H810ITX WiFi is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what LGA1851 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
265 W
Sufficient · 1.0x
Wired for about 265 W, enough for every processor on this socket including the top Core Ultra 9 chips at their 250 W ceiling, without a lot left over. The figure comes from its 8+1+1 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- H810
- Socket
- LGA1851
- Form factor
- Mini-ITX
Memory
- Type
- DDR5
- Slots
- 2
- Max speed
- 6,400 MT/s
- Max capacity
- 128 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM, CUDIMM
Power & VRM
- CPU power
- 265 W
- Phase config
- 8+1+1
- VRM stages
- 50A DrMOS
- EPS power
- 8
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 2× PCIe 4.0 ×4
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 5.0 ×16
Ethernet & Wi-Fi
- Intel I219-V
- 1 GbE
- Ethernet ports
- 1
- Wi-Fi
- Wi-Fi 6
USB & I/O
- Rear USB-A
- 2× USB 2.0, 6× 5 Gbps
- Rear USB-C
- 1× 5 Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 1
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 3
- HDMI
- 1 port
- DisplayPort
- 2 ports
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 3
- PCB colour
- Black, Grey
- Heatsink colour
- Grey, White
Onboard & Diagnostics
- Diagnostics
- Debug LEDs
Compare the Challenger H810ITX WiFi against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains LGA1851 pairings.
Where to buy the Challenger H810ITX WiFi
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| Newegg | In stock | $148.20 |  |
The Challenger H810ITX WiFi starts from $148.20 across 1 retailer (Wi-Fi 6). Prices update daily from live stock.
Which CPUs fit the Challenger H810ITX WiFi?
Compare all CPUs →In-stock LGA1851 processors this board can run, socket-matched and within its 265 W power budget, ranked by gaming value (performance per dollar).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Core Ultra 5 225F Intel | 10/10 | 62.5 | $143.00 | |
| Core Ultra 5 225 Intel | 10/10 | 62.5 | $159.99 | |
| Core Ultra 5 245KF Intel | 14/14 | 67.1 | $179.00 | |
| Core Ultra 5 250KF Plus Intel | 18/18 | 73.3 | $199.99 | |
| Core Ultra 5 245K Intel | 14/14 | 67.1 | $189.99 | |
| Core Ultra 5 250K Plus Intel | 18/18 | 73.3 | $214.99 | |
| Core Ultra 7 270K Plus Intel | 24/24 | 77.5 | $294.32 | |
| Core Ultra 7 265F Intel | 20/20 | 70.3 | $310.98 |
