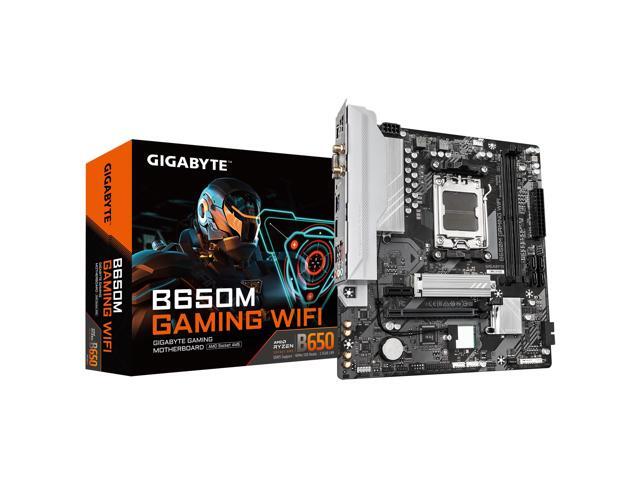

B650M GAMING WIFI
The Gigabyte B650M GAMING WIFI is a Micro ATX AM5 motherboard on the B650 chipset. It supports DDR5 memory up to 6,400 MT/s and 1 M.2 slot. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
MaxMyBuild scores
How we score →How well the B650M GAMING WIFI is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
119 W
Limited · 0.5x
Wired for about 119 W, roughly 52% of the 230 W that the top Ryzen 9 chips pull. Pair it with a mid-range processor rather than a flagship. The figure comes from its 5+2+2 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- B650
- Socket
- AM5
- Form factor
- Micro ATX
- MSRP
- $145.00
Memory
- Type
- DDR5
- Slots
- 2
- Max speed
- 6,400 MT/s
- Max capacity
- 128 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 119 W
- Phase config
- 5+2+2
- VRM stages
- 1H/1L
- EPS power
- 8
- VRM heatsink
- Partial (single bank)
Storage & Expansion
- M.2 slots
- 1
- M.2 layout
- 1× PCIe 4.0 ×4
- M.2 heatsinks
- All slots
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 4.0 ×16
- Other PCIe slots
- 1× PCIe 3.0 ×1
Ethernet & Wi-Fi
- Realtek RTL8125BG
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- Wi-Fi 5
USB & I/O
- Rear USB-A
- 4× USB 2.0, 2× 5 Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 2
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 3
- HDMI
- HDMI 2.1
- DisplayPort
- None
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 3
- 12V RGB headers
- 1
- 5V ARGB headers
- 2
- PCB colour
- Dark Brown, Light Grey
- Heatsink colour
- Silver, White
Onboard & Diagnostics
- BIOS Flashback
- Yes (rear)
- TPM header
- Yes
Compare the B650M GAMING WIFI against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains AM5 pairings.
Where to buy the B650M GAMING WIFI
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Buy |
|---|---|---|---|
| Newegg | In stock | $169.00 |  |
The B650M GAMING WIFI starts from $169.00 across 1 retailer (Wi-Fi 5). Prices update daily from live stock.
Which CPUs fit the B650M GAMING WIFI?
Compare all CPUs →In-stock AM5 processors this board can run, socket-matched and within its 119 W power budget, ranked by gaming value (performance per dollar).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
 | Ryzen 5 9600X AMD | 6/12 | 72.6 | $173.00 |
 | Ryzen 5 8500G AMD | 6/12 | 52.0 | $146.99 |
 | Ryzen 5 8400F AMD | 6/12 | 50.0 | $149.00 |
 | Ryzen 5 7500F AMD | 6/12 | 61.0 | $189.99 |
 | Ryzen 5 7600 AMD | 6/12 | 63.4 | $209.00 |
 | Ryzen 5 8600G AMD | 6/12 | 55.0 | $186.30 |
 | Ryzen 5 7500X3D AMD | 6/12 | 79.0 | $269.50 |
 | Ryzen 5 7600X3D AMD | 6/12 | 79.3 | $298.49 |
