ROG STRIX X870E-E WIFI7 NEO

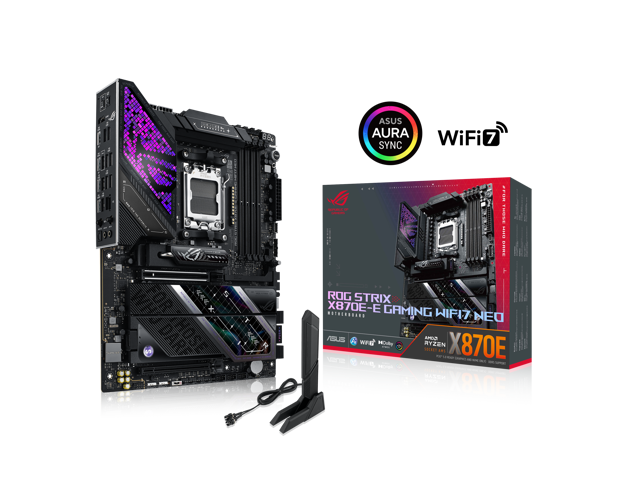

The ASUS ROG STRIX X870E-E WIFI7 NEO is a ATX AM5 motherboard on the X870E chipset. It supports DDR5 memory up to 9,600 MT/s and 5 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
MaxMyBuild scores
How we score →How well the ROG STRIX X870E-E WIFI7 NEO is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
576 W
Overbuilt · 2.5x
Wired for about 576 W, roughly 2.5x the 230 W that the top Ryzen 9 chips pull, so nothing on this socket will run it short of power. The figure comes from its 2x9+2+2 power-stage (VRM) layout and 8+8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- X870E
- Socket
- AM5
- Form factor
- ATX
- MSRP
- $600.00
Memory
- Type
- DDR5
- Slots
- 4
- Max speed
- 9,600 MT/s
- Max capacity
- 256 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 576 W
- Phase config
- 2x9+2+2
- VRM stages
- 110A SPS
- EPS power
- 8+8
Storage & Expansion
- M.2 slots
- 5
- M.2 layout
- 2× PCIe 5.0 ×4, 3× PCIe 4.0 ×4
- M.2 heatsinks
- All slots
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 5.0 ×16, 1× PCIe 4.0 ×4
Ethernet & Wi-Fi
- Realtek RTL8126
- 5 GbE
- Ethernet ports
- 1
- Wi-Fi
- Wi-Fi 7
USB & I/O
- Front USB-C
- 2× 20Gbps
Audio & Video
- Audio codec
- ALC4080 + SV3H712
- Audio jacks
- 2
- S/PDIF out
- Yes
- HDMI
- 1 port
- DisplayPort
- None
- USB-C video
- 2 ports
Cooling, RGB & Design
- Fan headers
- 8
- 5V ARGB headers
- 3
Onboard & Diagnostics
- BIOS Flashback
- Yes (Rear)
- Diagnostics
- POST code display
- Onboard buttons
- Clear CMOS
Compare the ROG STRIX X870E-E WIFI7 NEO against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains AM5 pairings.
Where to buy the ROG STRIX X870E-E WIFI7 NEO
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Buy |
|---|---|---|---|
| Newegg | In stock | $599.99 |  |
| Amazon | In stock | $599.99 |  |
The ROG STRIX X870E-E WIFI7 NEO starts from $599.99 across 2 retailers (Wi-Fi 7). Prices update daily from live stock.
Which CPUs fit the ROG STRIX X870E-E WIFI7 NEO?
Compare all CPUs →In-stock AM5 processors this board can run, socket-matched and within its 576 W power budget, ranked by gaming value (performance per dollar).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
 | Ryzen 5 9600X AMD | 6/12 | 72.6 | $173.00 |
 | Ryzen 5 7600X AMD | 6/12 | 67.3 | $163.00 |
 | Ryzen 5 8500G AMD | 6/12 | 52.0 | $146.99 |
 | Ryzen 5 8400F AMD | 6/12 | 50.0 | $149.00 |
 | Ryzen 5 7500F AMD | 6/12 | 61.0 | $189.99 |
 | Ryzen 5 7600 AMD | 6/12 | 63.4 | $209.00 |
 | Ryzen 7 7700X AMD | 8/16 | 70.6 | $233.00 |
 | Ryzen 5 8600G AMD | 6/12 | 55.0 | $186.30 |
