A620M- HDV/M.2+

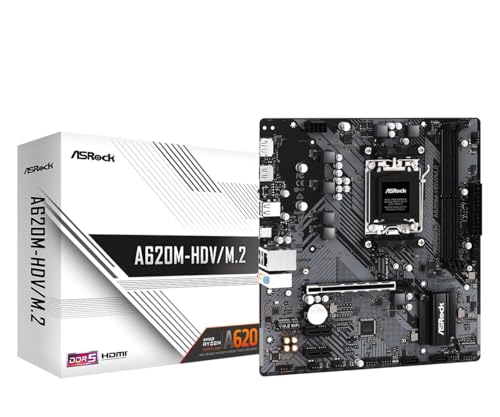

The ASRock A620M- HDV/M.2+ is a Micro ATX AM5 motherboard on the A620 chipset. It supports DDR5 memory up to 6,400 MT/s and 2 M.2 slots. It's out of stock at the retailers we track right now, but the specs below still apply whenever it returns.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
MaxMyBuild scores
How we score →How well the A620M- HDV/M.2+ is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
204 W
Limited · 0.8x
Wired for about 204 W, roughly 89% of the 230 W that the top Ryzen 9 chips pull. Pair it with a mid-range processor rather than a flagship. The figure comes from its 2x3+2+1 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- A620
- Socket
- AM5
- Form factor
- Micro ATX
- MSRP
- $110.00
Memory
- Type
- DDR5
- Slots
- 2
- Max speed
- 6,400 MT/s
- Max capacity
- 64 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 204 W
- Phase config
- 2x3+2+1
- VRM stages
- 50A DrMOS
- EPS power
- 8
- VRM heatsink
- Partial (single bank)
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 2× PCIe 4.0 ×4
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 4.0 ×16
- Other PCIe slots
- 2× PCIe 3.0 ×1
Ethernet & Wi-Fi
- Realtek RTL8111H
- 1 GbE
- Ethernet ports
- 1
- Wi-Fi
- None
USB & I/O
- Rear USB-A
- 2× USB 2.0, 3× 5 Gbps
- Rear USB-C
- 1× 5 Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 2
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 3
- HDMI
- HDMI 2.1
- DisplayPort
- DP 1.4
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 4
- PCB colour
- Grey, Black
- Heatsink colour
- Black
Onboard & Diagnostics
- BIOS Flashback
- Yes (rear)
- Diagnostics
- Debug LEDs
- TPM header
- Yes
Compare the A620M- HDV/M.2+ against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains AM5 pairings.
Where to buy the A620M- HDV/M.2+
Every in-stock retailer offer we track, cheapest first.
Currently out of stock
The A620M- HDV/M.2+ isn’t in stock at the retailers we track right now. Prices refresh daily, so check back — or compare other in-stock boards.
Browse in-stock motherboardsWhich CPUs fit the A620M- HDV/M.2+?
Compare all CPUs →In-stock AM5 processors this board can run, socket-matched and within its 204 W power budget, ranked by gaming value (performance per dollar).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
 | Ryzen 5 9600X AMD | 6/12 | 72.6 | $173.00 |
 | Ryzen 5 7600X AMD | 6/12 | 67.3 | $163.00 |
 | Ryzen 5 8500G AMD | 6/12 | 52.0 | $146.99 |
 | Ryzen 5 8400F AMD | 6/12 | 50.0 | $149.00 |
 | Ryzen 5 7500F AMD | 6/12 | 61.0 | $189.99 |
 | Ryzen 5 7600 AMD | 6/12 | 63.4 | $209.00 |
 | Ryzen 7 7700X AMD | 8/16 | 70.6 | $233.00 |
 | Ryzen 5 8600G AMD | 6/12 | 55.0 | $185.88 |
