A620AI WiFi

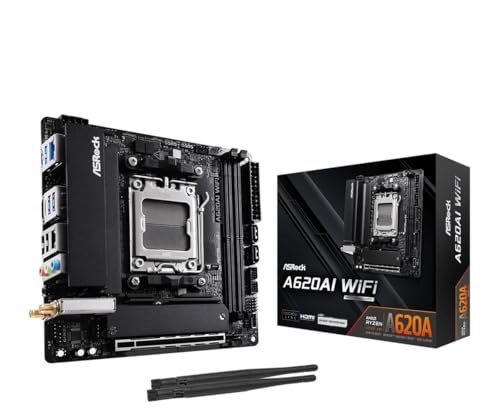

The ASRock A620AI WiFi is a Mini-ITX AM5 motherboard on the A620A chipset. It supports DDR5 memory up to 5,600 MT/s and 2 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
MaxMyBuild scores
How we score →How well the A620AI WiFi is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
288 W
Sufficient · 1.2x
Wired for about 288 W, enough for every processor on this socket including the top Ryzen 9 chips at their 230 W ceiling, without a lot left over. The figure comes from its 8+2+1 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- A620A
- Socket
- AM5
- Form factor
- Mini-ITX
- MSRP
- $131.00
Memory
- Type
- DDR5
- Slots
- 2
- Max speed
- 5,600 MT/s
- Max capacity
- 128 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 288 W
- Phase config
- 8+2+1
- VRM stages
- 80A DrMOS
- EPS power
- 8
- VRM heatsink
- Partial (single bank)
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 1× PCIe 4.0 ×4, 1× PCIe 3.0 ×4
- M.2 heatsinks
- Slots 1
- SATA ports
- 2 SATA3
- PCIe ×16 slots
- 1× PCIe 4.0 ×16
Ethernet & Wi-Fi
- Realtek RTL8125BG
- 2.5 GbE
- RTL8111
- 1 GbE
- Ethernet ports
- 2
- Wi-Fi
- Wi-Fi 6E
USB & I/O
- Front USB-C
- 1× 5Gbps
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 3
- S/PDIF out
- Yes
- HDMI
- 1 port
- DisplayPort
- None
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 2
- 5V ARGB headers
- 2
Onboard & Diagnostics
- BIOS Flashback
- Yes (Rear)
Compare the A620AI WiFi against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains AM5 pairings.
Where to buy the A620AI WiFi
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Buy |
|---|---|---|---|
| Newegg | In stock | $128.99 |  |
The A620AI WiFi starts from $128.99 across 1 retailer (Wi-Fi 6E). Prices update daily from live stock.
Which CPUs fit the A620AI WiFi?
Compare all CPUs →In-stock AM5 processors this board can run, socket-matched and within its 288 W power budget, ranked by gaming value (performance per dollar).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
 | Ryzen 5 9600X AMD | 6/12 | 72.6 | $173.00 |
 | Ryzen 5 7600X AMD | 6/12 | 67.3 | $163.00 |
 | Ryzen 5 8500G AMD | 6/12 | 52.0 | $146.99 |
 | Ryzen 5 8400F AMD | 6/12 | 50.0 | $149.00 |
 | Ryzen 5 7500F AMD | 6/12 | 61.0 | $189.99 |
 | Ryzen 5 7600 AMD | 6/12 | 63.4 | $209.00 |
 | Ryzen 7 7700X AMD | 8/16 | 70.6 | $233.00 |
 | Ryzen 5 8600G AMD | 6/12 | 55.0 | $186.30 |
