GeForce RTX 5090
The GeForce RTX 5090 is Nvidia’s 32GB graphics card with a 575W board power rating, built on the Blackwell GB202 architecture. Below you’ll find its full spec sheet and gaming and productivity benchmarks, plus all 7 board versions we track, each with its cheapest current price.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
Gaming scores are normalised performance indexes derived from Tom’s Hardware’s published GPU benchmarks. Performance per dollar and per watt are our own calculations on top of that data.
1080p Gaming
1440p Gaming
4K Gaming
The GeForce RTX 5090 scores 100.0 at 1080p, 100.0 at 1440p, and 100.0 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Performance-per-dollar rank among all GPUs with live pricing
Value at 1080p
#51
of 51
Value at 1440p
#50
of 50
Value at 4K
#46
of 46
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Render
Compute & AI
GeForce RTX 5090 versions (7)
Every board version we track, cheapest first.

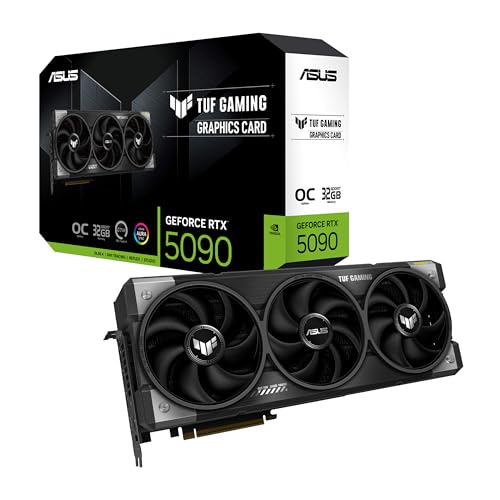

- ASUS TUF Gaming RTX 5090 OC Edition$7,100.00OC2550 MHz · 348 mm
- ASUS ROG Astral RTX 5090 OC Edition$7,399.99OC2580 MHz · 358 mm
- MSI RTX 5090 VANGUARD SOC LAUNCH EDITION$8,497.00OC2512 MHz · 357 mm
- $10,674.00
- Inno3D RTX 5090 X3 OC$11,565.00OC2452 MHz · 333 mm
- Palit RTX 5090 GameRock OC$12,029.00OC2527 MHz · 332 mm
- Palit RTX 5090 GameRock$12,715.00332 mm
| Version | Boost Clock | Length | Color | From | Buy | |
|---|---|---|---|---|---|---|
| ASUS TUF Gaming RTX 5090 OC EditionOC | 2550 MHz | 348 mm | — | $7,100.00 | | |
| ASUS ROG Astral RTX 5090 OC EditionOC | 2580 MHz | 358 mm | — | $7,399.99 | | |
| MSI RTX 5090 VANGUARD SOC LAUNCH EDITIONOC | 2512 MHz | 357 mm | — | $8,497.00 | | |
| Gainward RTX 5090 Phantom | — | 332 mm | — | $10,674.00 | | |
| Inno3D RTX 5090 X3 OCOC | 2452 MHz | 333 mm | — | $11,565.00 | | |
| Palit RTX 5090 GameRock OCOC | 2527 MHz | 332 mm | — | $12,029.00 | | |
| Palit RTX 5090 GameRock | — | 332 mm | — | $12,715.00 | |
7 board versions of the GeForce RTX 5090 are listed above, starting from $7,100.00. Prices update daily from live retailer stock. Click any version name for its full spec sheet and all current retailer prices.
Specifications
Board versions of the GeForce RTX 5090 range from 332–358 mm long, so check your case's GPU clearance before buying.
Performance
- Boost clock
- 2407 MHz
- Base clock
- 2010 MHz
- Shader cores
- 21,760
- SM count
- 170
- Texture units (TMUs)
- 680
- Render outputs (ROPs)
- 176
- RT cores
- 170 · 4th gen
- Tensor / AI cores
- 680 · 5th gen
Memory
- VRAM
- 32GB GDDR7
- Memory bus
- 512-bit
- Bandwidth
- 1792 GB/s
- Memory speed
- 28 Gbps
- L2 cache
- 96 MB
GPU die
- Architecture
- Blackwell GB202
- Process node
- TSMC 4N
- Foundry
- TSMC
- Die size
- 750 mm²
- Transistors
- 92.2 billion
- Generation
- GeForce RTX 50
Power
- TDP
- 575W
- Recommended PSU
- 1000W
- Power connectors
- 1 16-pin
Display & outputs
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
- Outputs
- 1 HDMI 2.1b, 3 DisplayPort 2.1b
- PCIe interface
- PCIe 5.0 ×16
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.4
- OpenGL
- 4.6
- OpenCL
- 3.0
- CUDA
- Compute 12.0
- Shader model
- 6.9
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Supported | Supported |
| VP9 | Not supported | Supported |
Encoder: NVENC 9th gen · Decoder: NVDEC 6th gen
Features
- Upscaling
- DLSS Super Resolution, Ray Reconstruction, Frame Generation, Multi Frame Generation, DLSS 5 Neural Rendering
- Also runs
- FSR 3, FSR 3 Frame Generation, XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- Yes
Physical
- Reference length
- 304 mm
- Slot width
- 2 slots
- Released
- 2025-01-30
- MSRP
- $1,999.00
21,760 shader cores feed a 512-bit memory interface delivering 1792 GB/s of peak bandwidth. 170 RT cores handle real-time ray tracing; 680 tensor cores accelerate AI workloads and DLSS Super Resolution. Compare the GeForce RTX 5090 against the full GPU lineup on the full graphics card rankings.
Local AI performance
What the GeForce RTX 5090 can run on your own machine, and how fast.
Largest model it can run (8K context)
- Q4 (the usual choice, near-original quality)
- ~44B
- Q8 (closer to original, half the model size)
- ~26B
- FP16 (unquantised, for training and research)
- ~14B
Parameter counts the card holds with room for an 8K conversation, counting the model weights plus its attention cache. A longer conversation needs more memory, so it lowers these figures.
Speed & value
- Speed, 8B model at Q4
- 216-259 tok/s
- Memory bandwidth
- 1792 GB/s
- Price per GB of VRAM
- $221.88
Generation speed tracks memory bandwidth, because every word produced reads the whole model from memory. Shown as a range.
Models that fit, at Q4
| Model | Size | Memory needed | Est. speed |
|---|---|---|---|
| Mixtral Latest | 46.7B | 29.1GB | 37-45 tok/s |
| Dolphin Mixtral Latest | 46.7B | 29.1GB | 37-45 tok/s |
| Aya 35B | 35.0B | 23.5GB | 46-55 tok/s |
Popular models small enough for this card at Q4, one per family. Speed is left blank for mixture-of-experts models, where a bandwidth estimate is not reliable enough to publish.
Across generations
Where the GeForce RTX 5090 sits in Nvidia’s lineup — the generation before and after.
How the GeForce RTX 5090 compares
Similar cards worth a look, based on live prices and 1440p gaming performance. Open a card for its full spec sheet, or a head-to-head for the side-by-side benchmark and price breakdown.
