GeForce RTX 5060 Ti 8 GB
The GeForce RTX 5060 Ti 8 GB is Nvidia’s 8GB graphics card with a 180W board power rating, built on the Blackwell GB206 architecture. Below you’ll find its full spec sheet and gaming and productivity benchmarks, plus all 26 board versions we track, each with its cheapest current price.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
Gaming scores are normalised performance indexes derived from Tom’s Hardware’s published GPU benchmarks. Performance per dollar and per watt are our own calculations on top of that data.
1080p Gaming
1440p Gaming
4K Gaming
The GeForce RTX 5060 Ti 8 GB scores 58.9 at 1080p, 39.2 at 1440p, and 21.0 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Performance-per-dollar rank among all GPUs with live pricing
Value at 1080p
#8
of 50
Value at 1440p
#9
of 49
Value at 4K
#24
of 46
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Compute & AI
GeForce RTX 5060 Ti 8 GB versions (26)
Every board version we track, cheapest first.
- PNY RTX 5060 Ti OC$499.99OC2692 MHz · 245 mm
- $501.99
- MSI RTX 5060 Ti VENTUS 2X OC PLUS$509.99OC2602 MHz · 227 mm
- $509.99
- MSI RTX 5060 Ti GAMING OC$519.99OC2647 MHz · 247 mm
- MSI RTX 5060 Ti GAMING TRIO OC$529.99OC2647 MHz · 300 mm

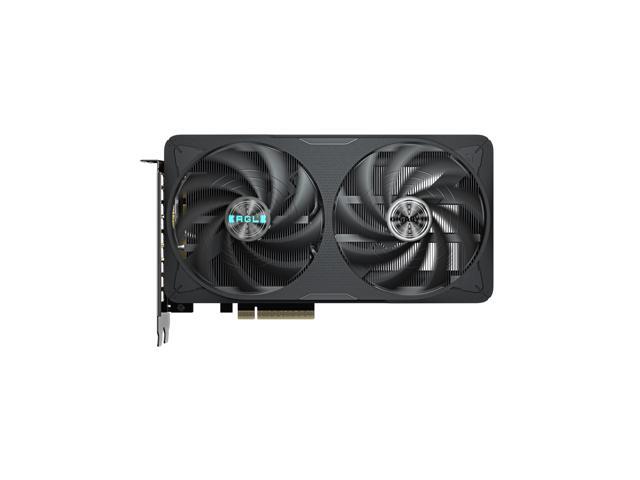

- GIGABYTE RTX 5060 Ti EAGLE OC$529.99OC2617 MHz · 215 mm
- GIGABYTE RTX 5060 Ti WINDFORCE OC$529.99OC2587 MHz · 208 mm
- $529.99
- ZOTAC RTX 5060 Ti Twin Edge OC$529.99OC2602 MHz · 221 mm
- PNY RTX 5060 Ti EPIC-X RGB OC$529.99OC2692 MHz · 300 mm
- ZOTAC RTX 5060 Ti Twin Edge OC White Edition$539.99OC2602 MHz · 221 mm
- GIGABYTE RTX 5060 Ti EAGLE OC ICE$539.99OC2617 MHz · 215 mm
- ASUS DUAL RTX 5060 Ti OC Edition$548.99OC2602 MHz · 229 mm
- GIGABYTE RTX 5060 Ti GAMING OC$549.99OC2647 MHz · 281 mm

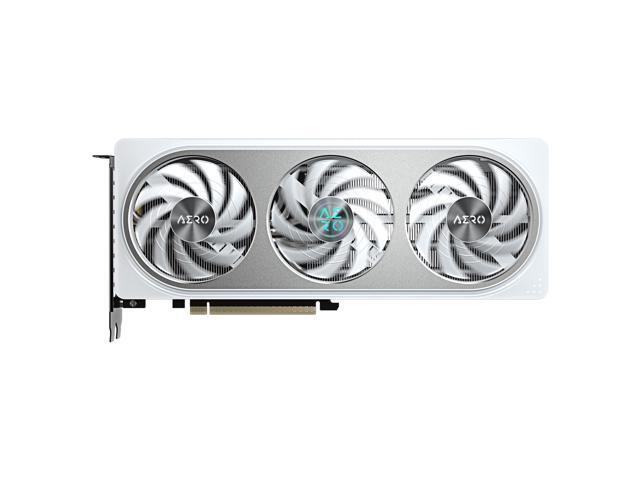

- GIGABYTE RTX 5060 Ti AERO OC$559.99OC2647 MHz · 281 mm
- PNY RTX 5060 Ti$572.13245 mm
- ASUS PRIME RTX 5060 Ti OC Edition$609.90OC2617 MHz · 304 mm
- ASUS T1 RTX 5060 Ti OC Edition$609.99OC305 mm
- ASUS TUF Gaming RTX 5060 Ti OC Edition$679.00OC2662 MHz · 302 mm
- $686.78
- Inno3D RTX 5060 Ti TWIN X2 OC$688.36OC2602 MHz · 250 mm
- Palit RTX 5060 Ti Dual$703.99262 mm
- Inno3D RTX 5060 Ti TWIN X2 OC WHITE$706.98OC2602 MHz · 250 mm
- $947.00
- Palit RTX 5060 Ti Infinity 3 OC$1,141.00OC2662 MHz · 292 mm
26 board versions of the GeForce RTX 5060 Ti 8 GB are listed above, starting from $499.99. Prices update daily from live retailer stock. Click any version name for its full spec sheet and all current retailer prices.
Specifications
Board versions of the GeForce RTX 5060 Ti 8 GB range from 208–306 mm long, so check your case's GPU clearance before buying.
Performance
- Boost clock
- 2572 MHz
- Base clock
- 2410 MHz
- Shader cores
- 4,608
- SM count
- 36
- Texture units (TMUs)
- 144
- Render outputs (ROPs)
- 48
- RT cores
- 36 · 4th gen
- Tensor / AI cores
- 144 · 5th gen
Memory
- VRAM
- 8GB GDDR7
- Memory bus
- 128-bit
- Bandwidth
- 448 GB/s
- Memory speed
- 28 Gbps
- L2 cache
- 32 MB
GPU die
- Architecture
- Blackwell GB206
- Process node
- TSMC 4N
- Foundry
- TSMC
- Die size
- 181 mm²
- Transistors
- 21.9 billion
- Generation
- GeForce RTX 50
Power
- TDP
- 180W
- Recommended PSU
- 600W
- Power connectors
- 1 8-pin
Display & outputs
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
- Outputs
- 1 HDMI 2.1b, 3 DisplayPort 2.1b
- PCIe interface
- PCIe 5.0 ×16
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.4
- OpenGL
- 4.6
- OpenCL
- 3.0
- CUDA
- Compute 12.0
- Shader model
- 6.9
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Supported | Supported |
| VP9 | Not supported | Supported |
Encoder: NVENC 9th gen · Decoder: NVDEC 6th gen
Features
- Upscaling
- DLSS Super Resolution, Ray Reconstruction, Frame Generation, Multi Frame Generation, DLSS 5 Neural Rendering
- Also runs
- FSR 3, FSR 3 Frame Generation, XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- Yes
Physical
- Reference length
- 241 mm
- Slot width
- 2 slots
- Released
- 2025-04-16
- MSRP
- $379.00
4,608 shader cores feed a 128-bit memory interface delivering 448 GB/s of peak bandwidth. 36 RT cores handle real-time ray tracing; 144 tensor cores accelerate AI workloads and DLSS Super Resolution. Compare the GeForce RTX 5060 Ti 8 GB against the full GPU lineup on the full graphics card rankings.
Local AI performance
What the GeForce RTX 5060 Ti 8 GB can run on your own machine, and how fast.
Largest model it can run (8K context)
- Q4 (the usual choice, near-original quality)
- ~9.3B
- Q8 (closer to original, half the model size)
- ~5.3B
- FP16 (unquantised, for training and research)
- ~2.8B
Parameter counts the card holds with room for an 8K conversation, counting the model weights plus its attention cache. A longer conversation needs more memory, so it lowers these figures.
Speed & value
- Speed, 8B model at Q4
- 73-84 tok/s
- Memory bandwidth
- 448 GB/s
- Price per GB of VRAM
- $62.50
Generation speed tracks memory bandwidth, because every word produced reads the whole model from memory. Shown as a range.
Models that fit, at Q4
| Model | Size | Memory needed | Est. speed |
|---|---|---|---|
| Glm4 9B | 9.4B | 5.8GB | 61-71 tok/s |
| Yi 9B | 8.8B | 5.8GB | 66-76 tok/s |
| Yi Coder 9B | 8.8B | 5.8GB | 66-76 tok/s |
Popular models small enough for this card at Q4, one per family. Speed is left blank for mixture-of-experts models, where a bandwidth estimate is not reliable enough to publish.
Across generations
Where the GeForce RTX 5060 Ti 8 GB sits in Nvidia’s lineup — the generation before and after.
How the GeForce RTX 5060 Ti 8 GB compares
Similar cards worth a look, based on live prices and 1440p gaming performance. Open a card for its full spec sheet, or a head-to-head for the side-by-side benchmark and price breakdown.
