PRO A620AM-G EVO WIFI

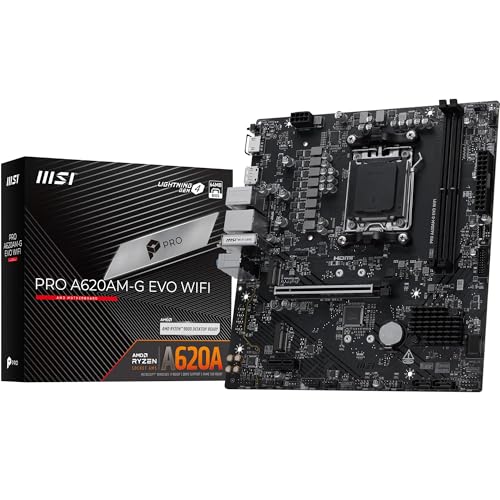

The MSI PRO A620AM-G EVO WIFI is a Micro ATX AM5 motherboard on the A620A chipset. It supports DDR5 memory and 2 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
MaxMyBuild scores
How we score →How well the PRO A620AM-G EVO WIFI is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what AM5 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
176 W
Limited · 0.7x
Wired for about 176 W, roughly 77% of the 230 W that the top Ryzen 9 chips pull. Pair it with a mid-range processor rather than a flagship. The figure comes from its 7+2+1 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- A620A
- Socket
- AM5
- Form factor
- Micro ATX
- MSRP
- $105.00
Memory
- Type
- DDR5
- Slots
- 2
- Max capacity
- 128 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 176 W
- Phase config
- 7+2+1
- VRM stages
- 1H/1L
- EPS power
- 8
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 2× PCIe 4.0 ×4
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 4.0 ×16
- Other PCIe slots
- 1× PCIe 3.0 ×1
Ethernet & Wi-Fi
- Realtek RTL8125D
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- Wi-Fi 6E
USB & I/O
- Rear USB-A
- 2× USB 2.0, 4× 5 Gbps
- Front USB-C
- 1× 5Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 2
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 3
- S/PDIF out
- Yes
- HDMI
- 1 port
- DisplayPort
- 1 port
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 3
- 12V RGB headers
- 1
- 5V ARGB headers
- 3
- PCB colour
- Black
- Heatsink colour
- Black
Onboard & Diagnostics
- BIOS Flashback
- Yes (Rear)
- Diagnostics
- Debug LEDs
- Onboard buttons
- Clear CMOS
Compare the PRO A620AM-G EVO WIFI against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains AM5 pairings.
Where to buy the PRO A620AM-G EVO WIFI
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| Amazon | In stock | $128.41 |  |
The PRO A620AM-G EVO WIFI starts from $128.41 across 1 retailer (Wi-Fi 6E). Prices update daily from live stock.
Which CPUs fit the PRO A620AM-G EVO WIFI?
Compare all CPUs →In-stock AM5 processors this board can run, socket-matched and within its 176 W power budget, ranked by gaming value (performance per dollar).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Ryzen 5 7500F AMD | 6/12 | 61.0 | $108.93 | |
| Ryzen 5 7400F AMD | 6/12 | 54.2 | $109.00 | |
| Ryzen 5 8400F AMD | 6/12 | 50.0 | $102.08 | |
| Ryzen 5 7600X AMD | 6/12 | 67.3 | $139.42 | |
| Ryzen 7 7700 AMD | 8/16 | 68.5 | $146.22 | |
| Ryzen 5 9600X AMD | 6/12 | 72.6 | $172.00 | |
| Ryzen 5 8500G AMD | 6/12 | 52.0 | $139.42 | |
| Ryzen 5 7500X3D AMD | 6/12 | 79.0 | $239.99 |
