B860I Aorus Pro Ice

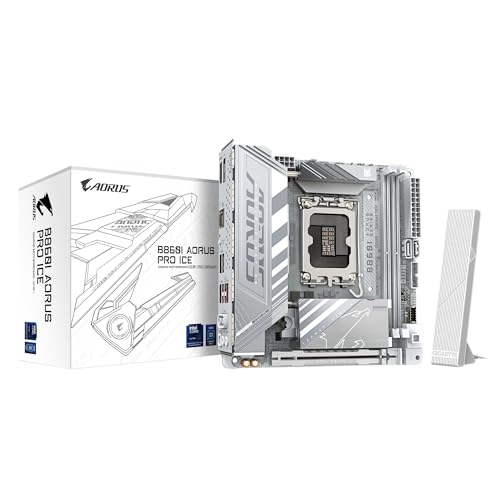

The Gigabyte B860I Aorus Pro Ice is a Mini-ITX LGA1851 motherboard on the B860 chipset. It supports DDR5 memory up to 9,200 MT/s and 2 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
MaxMyBuild scores
How we score →How well the B860I Aorus Pro Ice is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
288 W
Sufficient · 1.1x
Wired for about 288 W, enough for every processor on this socket including the top Core Ultra 9 chips at their 250 W ceiling, without a lot left over. The figure comes from its 8+1+2 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- B860
- Socket
- LGA1851
- Form factor
- Mini-ITX
Memory
- Type
- DDR5
- Slots
- 2
- Max speed
- 9,200 MT/s
- Max capacity
- 128 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM, CUDIMM
Power & VRM
- CPU power
- 288 W
- Phase config
- 8+1+2
- VRM stages
- 80A DrMOS
- EPS power
- 8
- VRM heatsink
- Full coverage
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 1× PCIe 5.0 ×4, 1× PCIe 4.0 ×4
- M.2 heatsinks
- Slots 1
- SATA ports
- 2 SATA3
- PCIe ×16 slots
- 1× PCIe 5.0 ×16
Ethernet & Wi-Fi
- Realtek RTL8125
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- Wi-Fi 7
USB & I/O
- Rear USB-A
- 2× USB 2.0, 3× 5 Gbps
- Rear USB-C
- 1× USB4 40 Gbps
- Front USB-C
- 1× 10Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 1
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 2
- S/PDIF out
- Yes
- HDMI
- HDMI 2.1
- DisplayPort
- DP 2.1
- USB-C video
- DP 2.1
Cooling, RGB & Design
- Fan headers
- 3
- 5V ARGB headers
- 2
- PCB colour
- White
- Heatsink colour
- Silver White, Silver
Onboard & Diagnostics
- BIOS Flashback
- Yes (rear)
- TPM header
- Yes
Compare the B860I Aorus Pro Ice against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains LGA1851 pairings.
Where to buy the B860I Aorus Pro Ice
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Buy |
|---|---|---|---|
| Amazon | In stock | $229.99 |  |
| Newegg | In stock | $229.99 |  |
The B860I Aorus Pro Ice starts from $229.99 across 2 retailers (Wi-Fi 7). Prices update daily from live stock.
Which CPUs fit the B860I Aorus Pro Ice?
Compare all CPUs →In-stock LGA1851 processors this board can run, socket-matched and within its 288 W power budget, ranked by gaming value (performance per dollar).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
 | Core Ultra 5 225F Intel | 10/10 | 62.5 | $149.99 |
 | Core Ultra 5 245KF Intel | 14/14 | 67.1 | $179.00 |
 | Core Ultra 5 250KF Plus Intel | 18/18 | 73.3 | $199.99 |
 | Core Ultra 5 225 Intel | 10/10 | 62.5 | $178.55 |
 | Core Ultra 5 245K Intel | 14/14 | 67.1 | $193.83 |
 | Core Ultra 5 250K Plus Intel | 18/18 | 73.3 | $212.00 |
 | Core Ultra 7 270K Plus Intel | 24/24 | 77.5 | $290.00 |
 | Core Ultra 7 265KF Intel | 20/20 | 70.3 | $284.00 |
