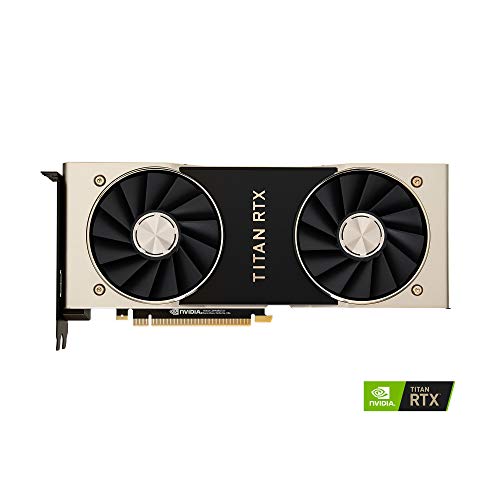

NVIDIA TITAN RTX
The NVIDIA TITAN RTX is NVIDIA ’s version of the Titan RTX. It measures 267 mm, close to the 267 mm reference design. Below you’ll find every current retailer price and the full spec sheet.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
1080p Gaming
1440p Gaming
4K Gaming
The Titan RTX scores 51.2 at 1080p, 33.5 at 1440p, and 27.4 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Render
Compute & AI
Where to buy
Every in-stock retailer we track, cheapest first.
- AmazonCHEAPEST$1,226.96In stockUpdated 2026-08-24
| Retailer | Price | Availability | Updated | Buy |
|---|---|---|---|---|
| AmazonCHEAPEST | $1,226.96 | In Stock | 2026-08-24 | |
Specifications
GPU chip
- Chip
- Titan RTX
- Architecture
- Turing TU102
- Process node
- TSMC 12N
- Shader cores
- 4,608
- SM count
- 72
- Texture units (TMUs)
- 288
- Render outputs (ROPs)
- 96
- RT cores
- 72 · 1st gen
- Tensor / AI cores
- 576 · 2nd gen
Memory
- VRAM
- 24GB GDDR6
- Memory bus
- 384-bit
- Bandwidth
- 672 GB/s
- Memory speed
- 14 Gbps
- L2 cache
- 6 MB
GPU die
- Foundry
- TSMC
- Die size
- 754 mm²
- Transistors
- 18.6 billion
- Generation
- GeForce RTX 20
Display & connectivity
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.3
- OpenGL
- 4.6
- OpenCL
- 3.0
- CUDA
- Compute 7.5
- Shader model
- 6.7
Platform features
- Upscaling
- DLSS Super Resolution, Ray Reconstruction
- Also runs
- FSR 3, FSR 3 Frame Generation, XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- No
- Multi-GPU
- NVLink
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Not supported | Not supported |
| VP9 | Not supported | Supported |
Encoder: NVENC 7th gen · Decoder: NVDEC 4th gen
Board
- Boost clock
- 1770 MHz(reference)
- Base clock
- 1350 MHz
- TDP
- 280W
- Recommended PSU
- 650W
- Power connectors
- 2 8-pin
Physical
- Cooling
- Air
- Warranty
- 3 years
- Length
- 267 mm
- Slot width
- 2 slots
- Outputs
- 1 HDMI 2.0, 3 Displayport 1.4a, 1 USB Type-C
Identifiers
- MPN
- 900-1G150-2500-000
- ASIN
- B07L8YGDL5
- EAN
- 0812674022758
- UPC
- 812674022758
Chip-level specs — cores, memory, die, APIs, media engine and platform features — are shared by every version of the Titan RTX. The Board, Physical and Identifier boxes are specific to this NVIDIA variant; a struck-through value shows where it differs from the reference design.
Across generations
Where the Titan RTX sits in NVIDIA ’s lineup — the generation before and after.
