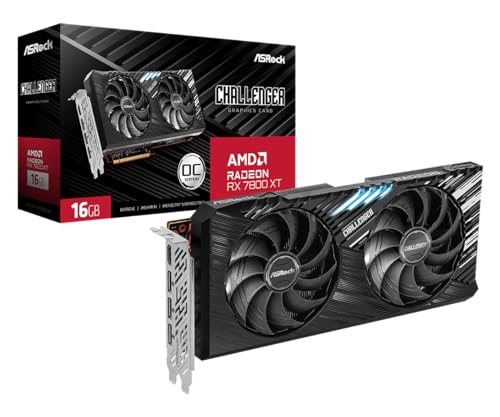

Radeon RX 7800 XT
The Radeon RX 7800 XT is AMD’s 16GB graphics card with a 263W board power rating, built on the RDNA 3 Navi 32 architecture. Below you’ll find its full spec sheet and gaming and productivity benchmarks, plus all 4 board versions we track, each with its cheapest current price.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
Gaming scores are normalised performance indexes derived from Tom’s Hardware’s published GPU benchmarks. Performance per dollar and per watt are our own calculations on top of that data.
1080p Gaming
1440p Gaming
4K Gaming
The Radeon RX 7800 XT scores 67.3 at 1080p, 48.6 at 1440p, and 38.5 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Performance-per-dollar rank among all GPUs with live pricing
Value at 1080p
#4
of 50
Value at 1440p
#3
of 49
Value at 4K
#5
of 46
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Render
Compute & AI
Radeon RX 7800 XT versions (4)
Every board version we track, cheapest first.
- ASRock RX 7800 XT Challenger OC$539.99OC267 mm
- $769.00
- $895.00
- GIGABYTE RX 7800 XT GAMING OC$989.87OC302 mm
| Version | Boost Clock | Length | Color | From | Buy | |
|---|---|---|---|---|---|---|
| ASRock RX 7800 XT Challenger OCOC | — | 267 mm | — | $539.99 | | |
| Yeston RX 7800 XT Sakura Hitomi Blossom SA | — | 329 mm | — | $769.00 | | |
| Sapphire PULSE RX 7800 XT | — | 280 mm | — | $895.00 | | |
| GIGABYTE RX 7800 XT GAMING OCOC | — | 302 mm | — | $989.87 | |
4 board versions of the Radeon RX 7800 XT are listed above, starting from $539.99. Prices update daily from live retailer stock. Click any version name for its full spec sheet and all current retailer prices.
Specifications
Board versions of the Radeon RX 7800 XT range from 267–329 mm long, so check your case's GPU clearance before buying.
Performance
- Boost clock
- 2430 MHz
- Base clock
- 1295 MHz
- Shader cores
- 3,840
- Compute units
- 60
- Texture units (TMUs)
- 240
- Render outputs (ROPs)
- 96
- RT cores
- 60 · 2nd gen
- Tensor / AI cores
- 120 · 1st gen
Memory
- VRAM
- 16GB GDDR6
- Memory bus
- 256-bit
- Bandwidth
- 624 GB/s
- Memory speed
- 19.5 Gbps
- Infinity Cache
- 64 MB
GPU die
- Architecture
- RDNA 3 Navi 32
- Process node
- TSMC N5/N6
- Foundry
- TSMC
- Die size
- 346 mm²
- Transistors
- 28.1 billion
- Generation
- Radeon RX 7000
Power
- TDP
- 263W
- Recommended PSU
- 700W
- Power connectors
- 2 8-pin
Display & outputs
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
- Outputs
- 1 HDMI 2.1a, 3 Displayport 2.1
- PCIe interface
- PCIe 4.0 ×16
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.3
- OpenGL
- 4.6
- OpenCL
- 2.2
- Shader model
- 6.8
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Supported | Supported |
| VP9 | Not supported | Supported |
Encoder: VCN 4.0 · Decoder: VCN 4.0
Features
- Upscaling
- FSR 4.1 (ML upscaling), FSR 3 Frame Generation
- Also runs
- XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- Yes
Physical
- Reference length
- 267 mm
- Slot width
- 2 slots
- Released
- 2023-09-06
- MSRP
- $499.00
3,840 shader cores feed a 256-bit memory interface delivering 624 GB/s of peak bandwidth. 60 RT cores handle real-time ray tracing; 120 tensor cores accelerate AI workloads and FSR 4.1 (ML upscaling). Compare the Radeon RX 7800 XT against the full GPU lineup on the full graphics card rankings.
Local AI performance
What the Radeon RX 7800 XT can run on your own machine, and how fast.
Largest model it can run (8K context)
- Q4 (the usual choice, near-original quality)
- ~20B
- Q8 (closer to original, half the model size)
- ~12B
- FP16 (unquantised, for training and research)
- ~6.6B
Parameter counts the card holds with room for an 8K conversation, counting the model weights plus its attention cache. A longer conversation needs more memory, so it lowers these figures.
Speed & value
- Speed, 8B model at Q4
- 86-101 tok/s
- Memory bandwidth
- 624 GB/s
- Price per GB of VRAM
- $33.75
Generation speed tracks memory bandwidth, because every word produced reads the whole model from memory. Shown as a range.
Models that fit, at Q4
| Model | Size | Memory needed | Est. speed |
|---|---|---|---|
| GPT Oss 20B | 20.9B | 13.2GB | — |
| Granite Code 20B | 20.1B | 13.7GB | 34-40 tok/s |
| Starcoder2 15B | 16.0B | 9.7GB | 43-51 tok/s |
Popular models small enough for this card at Q4, one per family. Speed is left blank for mixture-of-experts models, where a bandwidth estimate is not reliable enough to publish.
Across generations
Where the Radeon RX 7800 XT sits in AMD’s lineup — the generation before and after.
How the Radeon RX 7800 XT compares
Similar cards worth a look, based on live prices and 1440p gaming performance. Open a card for its full spec sheet, or a head-to-head for the side-by-side benchmark and price breakdown.
