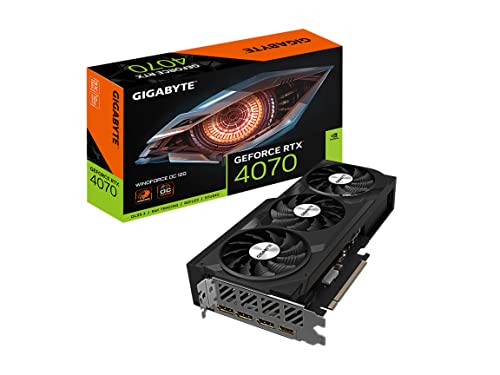

GIGABYTE RTX 4070 WINDFORCE OC
The GIGABYTE RTX 4070 WINDFORCE OC is GIGABYTE’s version of the GeForce RTX 4070. At 261 mm it’s 21 mm longer than the 240 mm reference design. It uses 1 8-pin rather than the reference 1 16-pin. Below you’ll find every current retailer price and the full spec sheet.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
1080p Gaming
1440p Gaming
4K Gaming
The GeForce RTX 4070 scores 65.6 at 1080p, 47.9 at 1440p, and 37.2 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Render
Compute & AI
Where to buy
Every in-stock retailer we track, cheapest first.
- AmazonCHEAPEST$809.99In stockUpdated 2026-08-23
| Retailer | Price | Availability | Updated | Buy |
|---|---|---|---|---|
| AmazonCHEAPEST | $809.99 | In Stock | 2026-08-23 | |
Specifications
GPU chip
- Chip
- GeForce RTX 4070
- Architecture
- Ada Lovelace AD104
- Process node
- TSMC 4N
- Shader cores
- 5,888
- SM count
- 46
- Texture units (TMUs)
- 184
- Render outputs (ROPs)
- 64
- RT cores
- 46 · 3rd gen
- Tensor / AI cores
- 184 · 4th gen
Memory
- VRAM
- 12GB GDDR6X
- Memory bus
- 192-bit
- Bandwidth
- 504 GB/s
- Memory speed
- 21 Gbps
- L2 cache
- 36 MB
GPU die
- Foundry
- TSMC
- Die size
- 295 mm²
- Transistors
- 35.8 billion
- Generation
- GeForce RTX 40
Display & connectivity
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.3
- OpenGL
- 4.6
- OpenCL
- 3.0
- CUDA
- Compute 8.9
- Shader model
- 6.8
Platform features
- Upscaling
- DLSS Super Resolution, Ray Reconstruction, Frame Generation
- Also runs
- FSR 3, FSR 3 Frame Generation, XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- Yes
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Supported | Supported |
| VP9 | Not supported | Supported |
Encoder: NVENC 8th gen · Decoder: NVDEC 5th gen
Board
- Boost clock
- 2475 MHz(reference)
- Base clock
- 1920 MHz
- TDP
- 200W
- Recommended PSU
- 650W
- Power connectors
- Reference design:
1 16-pinThis card: 1 8-pin
Physical
- Cooling
- Air
- Warranty
- 3 years
- Length
- Reference design:
240 mmThis card: 261 mm - Slot width
- 2 slots
- Outputs
- 1 HDMI 2.1, 3 Displayport 1.4a
Identifiers
- MPN
- GV-N4070WF3OC-12GD
- ASIN
- B0BZHCQ6PF
- EAN
- 0889523037003
- UPC
- 889523037003
Chip-level specs — cores, memory, die, APIs, media engine and platform features — are shared by every version of the GeForce RTX 4070. The Board, Physical and Identifier boxes are specific to this GIGABYTE variant; a struck-through value shows where it differs from the reference design.
Across generations
Where the GeForce RTX 4070 sits in GIGABYTE’s lineup — the generation before and after.
