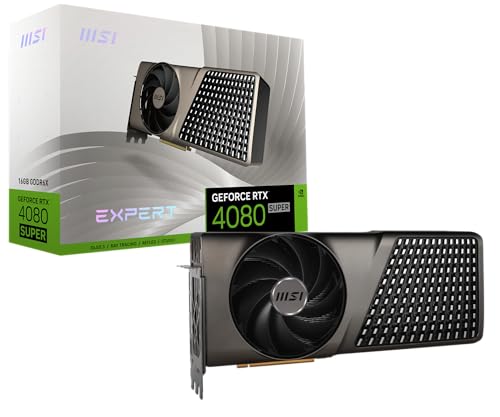

MSI RTX 4080 SUPER EXPERT
The MSI RTX 4080 SUPER EXPERT is MSI’s version of the GeForce RTX 4080 Super. It measures 312 mm, close to the 310 mm reference design. Below you’ll find every current retailer price and the full spec sheet.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
1080p Gaming
1440p Gaming
4K Gaming
The GeForce RTX 4080 Super scores 88.2 at 1080p, 73.5 at 1440p, and 61.5 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Render
Compute & AI
Where to buy
Every in-stock retailer we track, cheapest first.
- AmazonCHEAPEST$1,795.00In stockUpdated 2026-08-23
| Retailer | Price | Availability | Updated | Buy |
|---|---|---|---|---|
| AmazonCHEAPEST | $1,795.00 | In Stock | 2026-08-23 | |
Specifications
GPU chip
- Chip
- GeForce RTX 4080 Super
- Architecture
- Ada Lovelace AD103
- Process node
- TSMC 4N
- Shader cores
- 10,240
- SM count
- 80
- Texture units (TMUs)
- 320
- Render outputs (ROPs)
- 112
- RT cores
- 80 · 3rd gen
- Tensor / AI cores
- 320 · 4th gen
Memory
- VRAM
- 16GB GDDR6X
- Memory bus
- 256-bit
- Bandwidth
- 736 GB/s
- Memory speed
- 23 Gbps
- L2 cache
- 64 MB
GPU die
- Foundry
- TSMC
- Die size
- 379 mm²
- Transistors
- 45.9 billion
- Generation
- GeForce RTX 40
Display & connectivity
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.3
- OpenGL
- 4.6
- OpenCL
- 3.0
- CUDA
- Compute 8.9
- Shader model
- 6.8
Platform features
- Upscaling
- DLSS Super Resolution, Ray Reconstruction, Frame Generation
- Also runs
- FSR 3, FSR 3 Frame Generation, XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- Yes
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Supported | Supported |
| VP9 | Not supported | Supported |
Encoder: NVENC 8th gen · Decoder: NVDEC 5th gen
Board
- Boost clock
- 2550 MHz(reference)
- Base clock
- 2290 MHz
- TDP
- 320W
- Recommended PSU
- 750W
- Power connectors
- 1 16-pin
Physical
- Cooling
- Air
- Warranty
- 3 years
- Length
- Reference design:
310 mmThis card: 312 mm - Slot width
- 3 slots
- Outputs
- 1 HDMI 2.1, 3 Displayport 1.4a
Identifiers
- MPN
- G4080S16E
- ASIN
- B0CSZBBQ9B
- EAN
- 0824142353196
- UPC
- 824142353196
Chip-level specs — cores, memory, die, APIs, media engine and platform features — are shared by every version of the GeForce RTX 4080 Super. The Board, Physical and Identifier boxes are specific to this MSI variant; a struck-through value shows where it differs from the reference design.
