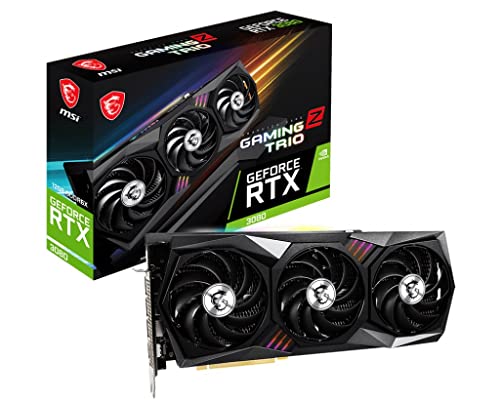

MSI RTX 3080 GAMING Z TRIO LHR
The MSI RTX 3080 GAMING Z TRIO LHR is MSI’s version of the GeForce RTX 3080 12GB. At 323 mm it’s 38 mm longer than the 285 mm reference design. It uses 3 8-pin rather than the reference 1 12-pin. At 3 slots it’s wider than the 2-slot reference design. Below you’ll find every current retailer price and the full spec sheet.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
1080p Gaming
1440p Gaming
4K Gaming
The GeForce RTX 3080 12GB scores 66.0 at 1080p, 48.0 at 1440p, and 37.5 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Render
Where to buy
Every in-stock retailer we track, cheapest first.
- AmazonCHEAPEST$1,189.00In stockUpdated 2026-08-24
| Retailer | Price | Availability | Updated | Buy |
|---|---|---|---|---|
| AmazonCHEAPEST | $1,189.00 | In Stock | 2026-08-24 | |
Specifications
GPU chip
- Chip
- GeForce RTX 3080 12GB
- Architecture
- Ampere GA102
- Process node
- Samsung 8N
- Shader cores
- 8,960
- SM count
- 70
- Texture units (TMUs)
- 280
- Render outputs (ROPs)
- 96
- RT cores
- 70 · 2nd gen
- Tensor / AI cores
- 280 · 3rd gen
Memory
- VRAM
- 12GB GDDR6X
- Memory bus
- 384-bit
- Bandwidth
- 912 GB/s
- Memory speed
- 19 Gbps
- L2 cache
- 6 MB
GPU die
- Foundry
- Samsung
- Die size
- 628 mm²
- Transistors
- 28.3 billion
- Generation
- GeForce RTX 30
Display & connectivity
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.3
- OpenGL
- 4.6
- OpenCL
- 3.0
- CUDA
- Compute 8.6
- Shader model
- 6.8
Platform features
- Upscaling
- DLSS Super Resolution, Ray Reconstruction
- Also runs
- FSR 3, FSR 3 Frame Generation, XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- Yes
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Not supported | Supported |
| VP9 | Not supported | Supported |
Encoder: NVENC 7th gen · Decoder: NVDEC 5th gen
Board
- Boost clock
- 1710 MHz(reference)
- Base clock
- 1260 MHz
- TDP
- 350W
- Recommended PSU
- 750W
- Power connectors
- Reference design:
1 12-pinThis card: 3 8-pin
Physical
- Cooling
- Air
- Warranty
- 3 years
- Length
- Reference design:
285 mmThis card: 323 mm - Slot width
- Reference design:
2 slotsThis card: 3 slots - Outputs
- 1 HDMI 2.1, 3 Displayport 1.4a
Identifiers
- ASIN
- B09QKL8XG5
- EAN
- 0824142278666
- UPC
- 824142278666
Chip-level specs — cores, memory, die, APIs, media engine and platform features — are shared by every version of the GeForce RTX 3080 12GB. The Board, Physical and Identifier boxes are specific to this MSI variant; a struck-through value shows where it differs from the reference design.
