Z890 D PLUS

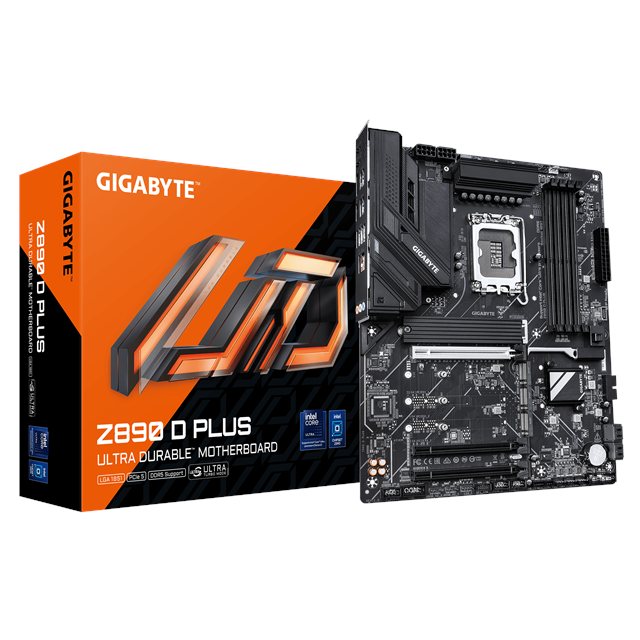

The Gigabyte Z890 D PLUS is a ATX LGA1851 motherboard on the Z890 chipset. It supports DDR5 memory and 4 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
MaxMyBuild scores
How we score →How well the Z890 D PLUS is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what LGA1851 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
302 W
Sufficient · 1.2x
Wired for about 302 W, enough for every processor on this socket including the top Core Ultra 9 chips at their 250 W ceiling, without a lot left over. The figure comes from its 2x6+1+2 power-stage (VRM) layout and 8+8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- Z890
- Socket
- LGA1851
- Form factor
- ATX
Memory
- Type
- DDR5
- Slots
- 4
- Max capacity
- 256 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 302 W
- Phase config
- 2x6+1+2
- VRM stages
- Discrete
- EPS power
- 8+8
Storage & Expansion
- M.2 slots
- 4
- M.2 layout
- 1× PCIe 5.0 ×4, 3× PCIe 4.0 ×4
- M.2 heatsinks
- Slots 1
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 5.0 ×16, 1× PCIe 4.0 ×4, 1× PCIe 4.0 ×4
Ethernet & Wi-Fi
- Realtek RTL8125
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- None
USB & I/O
- Rear USB-A
- 4× USB 2.0, 4× 5 Gbps, 1× 10 Gbps
- Rear USB-C
- 1× 10 Gbps
- Front USB-C
- 1× 5Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 2
- Thunderbolt header
- Yes
Audio & Video
- Audio codec
- ALC887
- Audio jacks
- 3
- S/PDIF out
- Yes
- HDMI
- None
- DisplayPort
- 1 port
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 6
- 12V RGB headers
- 1
- 5V ARGB headers
- 3
- PCB colour
- Black, Gray
- Heatsink colour
- Black
Onboard & Diagnostics
- BIOS Flashback
- Yes (Rear)
- Diagnostics
- Debug LEDs
- Onboard buttons
- Power, Reset
Compare the Z890 D PLUS against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains LGA1851 pairings.
Where to buy the Z890 D PLUS
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| Proshop | In stock Delivery 1-3 days | €170.54 + €4.99 shipping |  | |
| notebooksbilliger | In stock Delivery 2-4 days | €179.63 Free shipping |  |
The Z890 D PLUS starts from €170.54 across 2 retailers (No onboard Wi-Fi). Prices update daily from live stock. Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Which CPUs fit the Z890 D PLUS?
Compare all CPUs →In-stock LGA1851 processors this board can run, socket-matched and within its 302 W power budget, ranked by gaming value (performance per euro).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Core Ultra 5 225F Intel | 10/10 | 62.5 | €147.86 Free shipping | |
| Core Ultra 5 250KF Plus Intel | 18/18 | 73.3 | €179.99 + €4.99 shipping | |
| Core Ultra 5 245KF Intel | 14/14 | 67.1 | €168.47 Free shipping | |
| Core Ultra 5 250K Plus Intel | 18/18 | 73.3 | €189.99 + €4.99 shipping | |
| Core Ultra 5 225 Intel | 10/10 | 62.5 | €179.00 Free shipping | |
| Core Ultra 5 245K Intel | 14/14 | 67.1 | €196.02 Free shipping | |
| Core Ultra 7 270K Plus Intel | 24/24 | 77.5 | €289.99 + €4.99 shipping | |
| Core Ultra 7 265KF Intel | 20/20 | 70.3 | €279.65 Free shipping |
