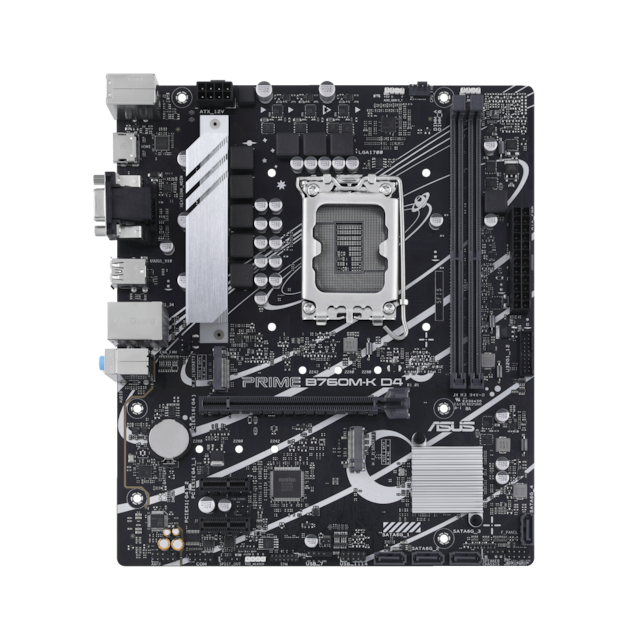

PRIME B760M-K D4
The ASUS PRIME B760M-K D4 is a Micro ATX LGA1700 motherboard on the B760 chipset. It supports DDR4 memory up to 5,333 MT/s and 2 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
MaxMyBuild scores
How we score →How well the PRIME B760M-K D4 is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what LGA1700 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
ASUS does not publish this board’s power-stage layout, so the CPU power factor in both scores uses a typical figure for B760 boards rather than a measured one for this model.
CPU power
122 W
Limited · 0.4x
Wired for about 122 W, roughly 41% of the 300 W that the top Core i9 chips pull. Pair it with a mid-range processor rather than a flagship. Its power-stage (VRM) layout is not published, so this is a deliberately cautious figure and the board may be built for more. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- B760
- Socket
- LGA1700
- Form factor
- Micro ATX
Memory
- Type
- DDR4
- Slots
- 2
- Max speed
- 5,333 MT/s
- Max capacity
- 64 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 122 W
- EPS power
- 8
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 2× PCIe 4.0 ×4
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 4.0 ×16
- Other PCIe slots
- 2× PCIe 4.0 ×1
Ethernet & Wi-Fi
- Realtek
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- None
USB & I/O
- Rear USB-A
- 2× USB 2.0, 4× 5 Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 2
Audio & Video
- Audio codec
- Realtek
- Audio jacks
- 3
- HDMI
- HDMI 2.1
- DisplayPort
- None
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 2
- 12V RGB headers
- 1
- 5V ARGB headers
- 2
Onboard & Diagnostics
- Diagnostics
- Debug LEDs
- TPM header
- Yes
Compare the PRIME B760M-K D4 against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains LGA1700 pairings.
Where to buy the PRIME B760M-K D4
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| notebooksbilliger | In stock Delivery 2-4 days | €102.78 Free shipping |  | |
| Proshop | In stock Delivery 5-7 days | €109.90 + €4.99 shipping |  |
The PRIME B760M-K D4 starts from €102.78 across 2 retailers (No onboard Wi-Fi). Prices update daily from live stock. Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Which CPUs fit the PRIME B760M-K D4?
Compare all CPUs →In-stock LGA1700 processors this board can run, socket-matched and within its 122 W power budget, ranked by gaming value (performance per euro).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Pentium Gold G7400 Intel | 2/4 | 31.5 | €94.49 + €4.99 shipping |
