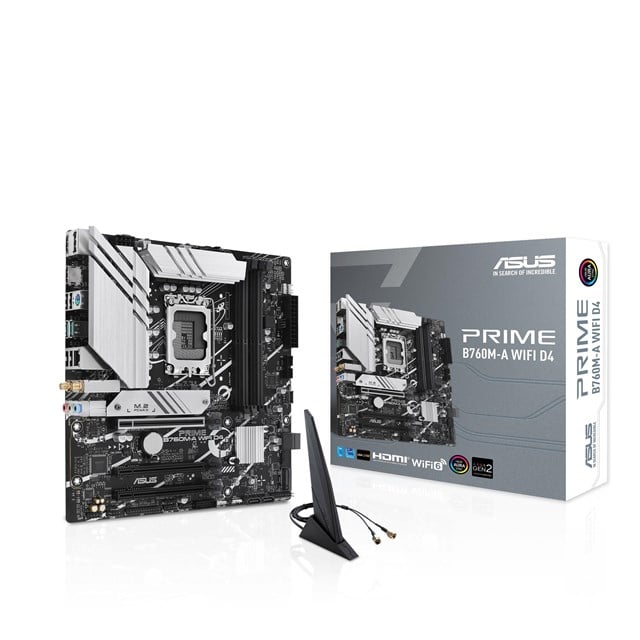

PRIME B760M-A WIFI D4
The ASUS PRIME B760M-A WIFI D4 is a Micro ATX LGA1700 motherboard on the B760 chipset. It supports DDR4 memory up to 5,333 MT/s and 2 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
MaxMyBuild scores
How we score →How well the PRIME B760M-A WIFI D4 is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what LGA1700 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
259 W
Limited · 0.8x
Wired for about 259 W, roughly 86% of the 300 W that the top Core i9 chips pull. Pair it with a mid-range processor rather than a flagship. The figure comes from its 9+1 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- B760
- Socket
- LGA1700
- Form factor
- Micro ATX
Memory
- Type
- DDR4
- Slots
- 4
- Max speed
- 5,333 MT/s
- Max capacity
- 128 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 259 W
- Phase config
- 9+1
- VRM stages
- 1H/2L
- EPS power
- 8
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 2× PCIe 4.0 ×4
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 4.0 ×16, 1× PCIe 4.0 ×4, 1× PCIe 4.0 ×1
Ethernet & Wi-Fi
- Realtek
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- Wi-Fi 6
USB & I/O
- Rear USB-A
- 4× USB 2.0, 2× 10 Gbps
- Front USB-C
- 1× 5Gbps
- Front USB 3 headers
- 2
- Front USB 2 headers
- 3
Audio & Video
- Audio codec
- Realtek
- Audio jacks
- 3
- HDMI
- 2× HDMI 2.1
- DisplayPort
- DP 1.4
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 4
- 12V RGB headers
- 1
- 5V ARGB headers
- 3
Onboard & Diagnostics
- Diagnostics
- Debug LEDs
- TPM header
- Yes
Compare the PRIME B760M-A WIFI D4 against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains LGA1700 pairings.
Where to buy the PRIME B760M-A WIFI D4
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| notebooksbilliger | In stock Delivery 2-4 days | €139.25 Free shipping |  | |
| Proshop | In stock Delivery 1-3 days | €134.90 + €4.99 shipping |  |
The PRIME B760M-A WIFI D4 starts from €134.90 across 2 retailers (Wi-Fi 6). Prices update daily from live stock. Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Which CPUs fit the PRIME B760M-A WIFI D4?
Compare all CPUs →In-stock LGA1700 processors this board can run, socket-matched and within its 259 W power budget, ranked by gaming value (performance per euro).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Pentium Gold G7400 Intel | 2/4 | 31.5 | €94.49 + €4.99 shipping | |
| Core i5-13400F Intel | 10/16 | 54.5 | €198.00 Free shipping | |
| Core i7-13700F Intel | 16/24 | 70.6 | €286.30 + €4.99 shipping | |
| Core i5-13400 Intel | 10/16 | 54.5 | €237.37 Free shipping | |
| Core i7-14700KF Intel | 20/28 | 76.4 | €348.05 + €4.99 shipping | |
| Core i9-13900 Intel | 24/32 | 76.8 | €617.59 + €4.99 shipping |
