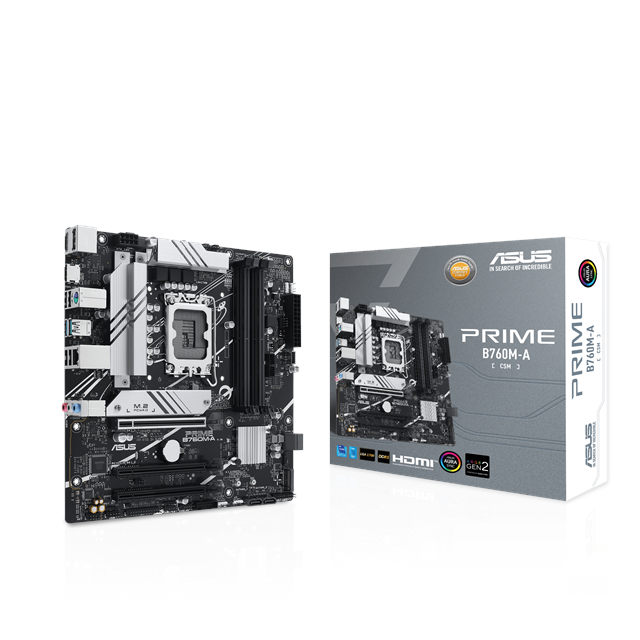

Prime B760M-A-CSM
The ASUS Prime B760M-A-CSM is a Micro ATX LGA1700 motherboard on the B760 chipset. It supports DDR5 memory up to 7,200 MT/s and 2 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
MaxMyBuild scores
How we score →How well the Prime B760M-A-CSM is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what LGA1700 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
240 W
Limited · 0.8x
Wired for about 240 W, roughly 80% of the 300 W that the top Core i9 chips pull. Pair it with a mid-range processor rather than a flagship. The figure comes from its 6+1 power-stage (VRM) layout and 8 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- B760
- Socket
- LGA1700
- Form factor
- Micro ATX
Memory
- Type
- DDR5
- Slots
- 4
- Max speed
- 7,200 MT/s
- Max capacity
- 128 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 240 W
- Phase config
- 6+1
- VRM stages
- 50A
- EPS power
- 8
- VRM heatsink
- Full coverage
Storage & Expansion
- M.2 slots
- 2
- M.2 layout
- 2× PCIe 4.0 ×4
- M.2 heatsinks
- Slots 1
- SATA ports
- 4
- PCIe ×16 slots
- 1× PCIe 4.0 ×16, 1× PCIe 4.0 ×4, 1× PCIe 4.0 ×1
Ethernet & Wi-Fi
- Ethernet
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- None
USB & I/O
- Rear USB-A
- 4× USB 2.0, 2× 10 Gbps
- Front USB-C
- 1× 5Gbps
- Front USB 3 headers
- 2
- Front USB 2 headers
- 25
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 3
- S/PDIF out
- Yes
- HDMI
- HDMI 2.1
- DisplayPort
- DP 1.4
Cooling, RGB & Design
- Fan headers
- 2
- 12V RGB headers
- 1
- 5V ARGB headers
- 3
- PCB colour
- Black
- Heatsink colour
- Silver
Onboard & Diagnostics
- Onboard buttons
- Clear CMOS
- TPM header
- Yes
Compare the Prime B760M-A-CSM against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains LGA1700 pairings.
Where to buy the Prime B760M-A-CSM
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| notebooksbilliger | In stock Delivery 2-4 days | €115.91 Free shipping |  |
The Prime B760M-A-CSM starts from €115.91 across 1 retailer (No onboard Wi-Fi). Prices update daily from live stock. Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Which CPUs fit the Prime B760M-A-CSM?
Compare all CPUs →In-stock LGA1700 processors this board can run, socket-matched and within its 240 W power budget, ranked by gaming value (performance per euro).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Pentium Gold G7400 Intel | 2/4 | 31.5 | €94.49 + €4.99 shipping | |
| Core i5-13400F Intel | 10/16 | 54.5 | €198.00 Free shipping | |
| Core i7-13700F Intel | 16/24 | 70.6 | €286.30 + €4.99 shipping | |
| Core i5-13400 Intel | 10/16 | 54.5 | €237.37 Free shipping | |
| Core i9-13900 Intel | 24/32 | 76.8 | €617.59 + €4.99 shipping |
