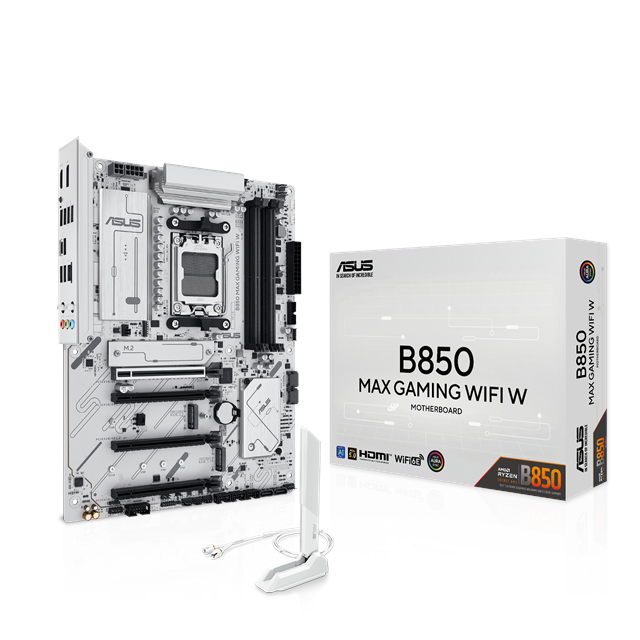

B850 MAX GAMING WIFI W
The ASUS B850 MAX GAMING WIFI W is a ATX AM5 motherboard on the B850 chipset. It supports DDR5 memory and 3 M.2 slots. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
MaxMyBuild scores
How we score →How well the B850 MAX GAMING WIFI W is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what AM5 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
224 W
Limited · 0.9x
Wired for about 224 W, roughly 97% of the 230 W that the top Ryzen 9 chips pull. Pair it with a mid-range processor rather than a flagship. The figure comes from its 2x4+2+1 power-stage (VRM) layout and 8+4 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- B850
- Socket
- AM5
- Form factor
- ATX
Memory
- Type
- DDR5
- Slots
- 4
- Max capacity
- 256 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 224 W
- Phase config
- 2x4+2+1
- VRM stages
- 1H/1L
- EPS power
- 8+4
- VRM heatsink
- Full coverage
Storage & Expansion
- M.2 slots
- 3
- M.2 layout
- 1× PCIe 5.0 ×4, 1× PCIe 4.0 ×4, 1× PCIe 4.0 ×2
- M.2 heatsinks
- Slots 1
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 5.0 ×16, 1× PCIe 3.0 ×1, 1× PCIe 3.0 ×1, 1× PCIe 4.0 ×4
Ethernet & Wi-Fi
- Realtek RTL8125
- 2.5 GbE
- Ethernet ports
- 1
- Wi-Fi
- Wi-Fi 6E
USB & I/O
- Rear USB-A
- 2× USB 2.0, 2× 5 Gbps, 3× 10 Gbps
- Rear USB-C
- 1× 10 Gbps
- Front USB-C
- 1× 5Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 3
- Thunderbolt header
- Yes
Audio & Video
- Audio codec
- ALC897
- Audio jacks
- 3
- S/PDIF out
- Yes
- HDMI
- 1 port
- DisplayPort
- 1 port
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 7
- 5V ARGB headers
- 3
- PCB colour
- Black, White
- Heatsink colour
- Silver, Gray
Onboard & Diagnostics
- BIOS Flashback
- Yes (Rear)
- Diagnostics
- Power LED
Compare the B850 MAX GAMING WIFI W against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains AM5 pairings.
Where to buy the B850 MAX GAMING WIFI W
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| Proshop | In stock Delivery 1-3 days | €182.72 Free shipping |  | |
| notebooksbilliger | In stock Delivery 2-4 days | €221.78 Free shipping |  |
The B850 MAX GAMING WIFI W starts from €182.72 across 2 retailers (Wi-Fi 6E). Prices update daily from live stock. Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Which CPUs fit the B850 MAX GAMING WIFI W?
Compare all CPUs →In-stock AM5 processors this board can run, socket-matched and within its 224 W power budget, ranked by gaming value (performance per euro).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Ryzen 5 7500F AMD | 6/12 | 61.0 | €121.90 + €4.99 shipping | |
| Ryzen 5 7600X AMD | 6/12 | 67.3 | €149.00 Free shipping | |
| Ryzen 5 8500G AMD | 6/12 | 52.0 | €119.33 + €4.99 shipping | |
| Ryzen 5 9600X AMD | 6/12 | 72.6 | €179.00 Free shipping | |
| Ryzen 5 8400F AMD | 6/12 | 50.0 | €125.31 Free shipping | |
| Ryzen 7 7700 AMD | 8/16 | 68.5 | €174.31 + €4.99 shipping | |
| Ryzen 5 7600 AMD | 6/12 | 63.4 | €169.65 Free shipping | |
| Ryzen 5 7500X3D AMD | 6/12 | 79.0 | €224.48 Free shipping |
