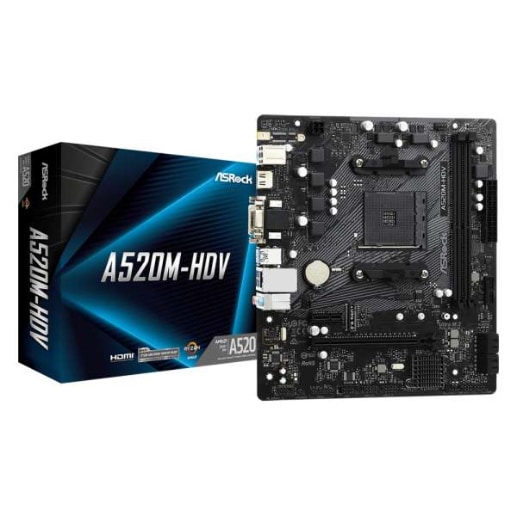

A520M-HDV
The ASRock A520M-HDV is a Micro ATX AM4 motherboard on the A520 chipset. It supports DDR4 memory up to 4,600 MT/s and 1 M.2 slot. Full specs, power delivery, and current prices are below.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
MaxMyBuild scores
How we score →How well the A520M-HDV is equipped for gaming and for productivity, scored 0–100 from its specs. Scores are fit-for-purpose: a capable board can top the gaming score without being the most expensive. Each factor is judged against what AM4 processors can use, so the score compares this board with the others you could buy for the same chip.
Weighs CPU power delivery, memory speed support, the GPU PCIe slot, Wi-Fi version, and M.2 storage — the things that actually matter for a gaming build.
Rewards fast, plentiful M.2 storage and USB I/O, PCIe expansion, memory capacity and slots — what matters for content creation and heavy multitasking.
CPU power
101 W
Limited · 0.7x
Wired for about 101 W, roughly 71% of the 142 W that the top Ryzen 9 chips pull. Pair it with a mid-range processor rather than a flagship. The figure comes from its 4+2 power-stage (VRM) layout and 4 EPS connectors. It is a rating of what the board is built to deliver, not a measurement, so treat it as headroom rather than a guarantee.
Specifications
Platform
- Chipset
- A520
- Socket
- AM4
- Form factor
- Micro ATX
Memory
- Type
- DDR4
- Slots
- 2
- Max speed
- 4,600 MT/s
- Max capacity
- 64 GB
- Channels
- 2-channel
- ECC / memory
- UDIMM
Power & VRM
- CPU power
- 101 W
- Phase config
- 4+2
- VRM stages
- 1H/1L
- EPS power
- 4
Storage & Expansion
- M.2 slots
- 1
- M.2 layout
- 1× PCIe 3.0 ×4
- SATA ports
- 4 SATA3
- PCIe ×16 slots
- 1× PCIe 3.0 ×16
- Other PCIe slots
- 1× PCIe 3.0 ×1
Ethernet & Wi-Fi
- Realtek RTL8111H
- 1 GbE
- Ethernet ports
- 1
- Wi-Fi
- None
USB & I/O
- Rear USB-A
- 2× USB 2.0, 4× 5 Gbps
- Front USB 3 headers
- 1
- Front USB 2 headers
- 2
Audio & Video
- Audio codec
- Realtek ALC887
- Audio jacks
- 3
- HDMI
- 1 port
- DisplayPort
- None
- USB-C video
- None
Cooling, RGB & Design
- Fan headers
- 3
- 12V RGB headers
- 0
- 5V ARGB headers
- 0
- PCB colour
- Black
- Heatsink colour
- Gray
Onboard & Diagnostics
- TPM header
- Yes
Compare the A520M-HDV against every other board on the motherboard comparison table. Not sure it fits your chip? The socket compatibility guide explains AM4 pairings.
Where to buy the A520M-HDV
Every in-stock retailer offer we track, cheapest first.
| Retailer | Availability | Price | Updated | Buy |
|---|---|---|---|---|
| notebooksbilliger | In stock | €46.59 Free shipping |  | |
| Proshop | In stock Delivery 4-6 days | €52.27 + €4.99 shipping |  |
The A520M-HDV starts from €46.59 across 2 retailers (No onboard Wi-Fi). Prices update daily from live stock. Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Which CPUs fit the A520M-HDV?
Compare all CPUs →In-stock AM4 processors this board can run, socket-matched and within its 101 W power budget, ranked by gaming value (performance per euro).
| Processor | Cores | Gaming | From | |
|---|---|---|---|---|
| Ryzen 5 5500 AMD | 6/12 | 38.7 | €90.62 Free shipping | |
| Ryzen 5 5600 AMD | 6/12 | 52.0 | €124.88 Free shipping | |
| Ryzen 5 5500F AMD | 6/12 | 41.5 | €99.90 Free shipping | |
| Ryzen 3 3200G AMD | 4/4 | 25.1 | €61.96 + €4.99 shipping | |
| Ryzen 5 5600XT AMD | 6/12 | 53.7 | €135.51 Free shipping | |
| Ryzen 7 5700 AMD | 8/16 | 52.0 | €159.70 + €4.99 shipping | |
| Ryzen 7 3700X AMD | 8/16 | 41.5 | €129.66 + €4.99 shipping | |
| Ryzen 7 5700X AMD | 8/16 | 55.3 | €189.99 Free shipping |
