Radeon RX 9060 XT 8 GB
The Radeon RX 9060 XT 8 GB is AMD’s 8GB graphics card with a 150W board power rating, built on the RDNA 4 Navi 44 architecture. Below you’ll find its full spec sheet and gaming and productivity benchmarks, plus all 2 board versions we track, each with its cheapest current price in Germany.
Prices update regularly and may differ at the retailer. This page contains affiliate links.
Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Gaming performance
Gaming score: geometric mean of in-game FPS, normalized so the RTX 5090 = 100. Render and synthetic scores are in the Benchmarks section below.
Gaming scores are normalised performance indexes derived from Tom’s Hardware’s published GPU benchmarks. Performance per dollar and per watt are our own calculations on top of that data.
1080p Gaming
1440p Gaming
4K Gaming
The Radeon RX 9060 XT 8 GB scores 55.7 at 1080p, 36.1 at 1440p, and 27.0 at 4K on a scale where 100 = the fastest GPU we test (RTX 5090). These scores apply to all board versions of this chip.
Performance-per-euro rank among all GPUs with live pricing in Germany
Value at 1080p
#7
of 21
Value at 1440p
#9
of 20
Value at 4K
#7
of 17
Benchmarks
Standardized benchmark scores for this chip, each compared to the fastest card we track and linked to its source. They apply to every board version.
3D & gaming
Compute & AI
Radeon RX 9060 XT 8 GB versions (2)
Every board version we track, cheapest first.

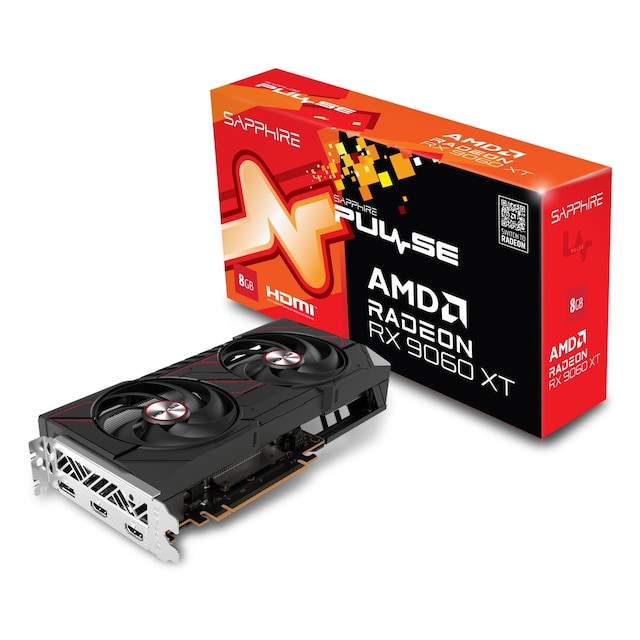

- Sapphire PULSE RX 9060 XT GAMING OC 8 GBOC3290 MHz · 244 mm€526.66Free shipping
- PowerColor Reaper RX 9060 XT OC 8 GBOC3230 MHz · 200 mm€559.00Free shipping
| Version | Boost Clock | Length | Color | From | Buy | |
|---|---|---|---|---|---|---|
| Sapphire PULSE RX 9060 XT GAMING OC 8 GBOC | 3290 MHz | 244 mm | — | €526.66 Free shipping | | |
| PowerColor Reaper RX 9060 XT OC 8 GBOC | 3230 MHz | 200 mm | — | €559.00 Free shipping | |
2 board versions of the Radeon RX 9060 XT 8 GB are listed above, starting from €526.66. Prices update daily from live retailer stock. Click any version name for its full spec sheet and all current retailer prices. Prices include 19% VAT. Shipping is shown under each price, and offers are listed by price plus shipping.
Specifications
Board versions of the Radeon RX 9060 XT 8 GB range from 200–244 mm long, so check your case's GPU clearance before buying.
Performance
- Boost clock
- 3130 MHz
- Shader cores
- 2,048
- Compute units
- 32
- Texture units (TMUs)
- 128
- Render outputs (ROPs)
- 64
- RT cores
- 32 · 3rd gen
- Tensor / AI cores
- 64 · 2nd gen
Memory
- VRAM
- 8GB GDDR6
- Memory bus
- 128-bit
- Bandwidth
- 320 GB/s
- Memory speed
- 20 Gbps
- Infinity Cache
- 32 MB
GPU die
- Architecture
- RDNA 4 Navi 44
- Process node
- TSMC N4P
- Foundry
- TSMC
- Die size
- 199 mm²
- Transistors
- 29.7 billion
- Generation
- Radeon RX 9000
Power
- TDP
- 150W
- Recommended PSU
- 450W
- Power connectors
- 1 8-pin
Display & outputs
- Max resolution
- 7680 × 4320
- Max displays
- 4
- HDCP
- 2.3
- Outputs
- 1 HDMI 2.1b, 2 DisplayPort 2.1a
- PCIe interface
- PCIe 5.0 ×16
APIs & software
- DirectX
- 12 Ultimate (12.2)
- Vulkan
- 1.3
- OpenGL
- 4.6
- OpenCL
- 2.2
- Shader model
- 6.8
Video encoding & decoding
| Codec | Encode | Decode |
|---|---|---|
| H.264 / AVC | Supported | Supported |
| H.265 / HEVC | Supported | Supported |
| AV1 | Supported | Supported |
| VP9 | Not supported | Supported |
Encoder: VCN 5.0 · Decoder: VCN 5.0
Features
- Upscaling
- FSR 4.1 (ML upscaling), FSR 3 Frame Generation
- Also runs
- XeSS 2, XeSS 2 Frame Generation
- Resizable BAR
- Yes
Physical
- Length (by version)
- 200–244 mm
- Slot width
- 2 slots
- Released
- 2025-06-05
2,048 shader cores feed a 128-bit memory interface delivering 320 GB/s of peak bandwidth. 32 RT cores handle real-time ray tracing; 64 tensor cores accelerate AI workloads and FSR 4.1 (ML upscaling). Compare the Radeon RX 9060 XT 8 GB against the full GPU lineup on the full graphics card rankings.
Local AI performance
What the Radeon RX 9060 XT 8 GB can run on your own machine, and how fast.
Largest model it can run (8K context)
- Q4 (the usual choice, near-original quality)
- ~9.3B
- Q8 (closer to original, half the model size)
- ~5.3B
- FP16 (unquantised, for training and research)
- ~2.8B
Parameter counts the card holds with room for an 8K conversation, counting the model weights plus its attention cache. A longer conversation needs more memory, so it lowers these figures.
Speed & value
- Speed, 8B model at Q4
- 49-56 tok/s
- Memory bandwidth
- 320 GB/s
- Price per GB of VRAM
- €65.83
Generation speed tracks memory bandwidth, because every word produced reads the whole model from memory. Shown as a range.
Models that fit, at Q4
| Model | Size | Memory needed | Est. speed |
|---|---|---|---|
| Glm4 9B | 9.4B | 5.8GB | 43-50 tok/s |
| Yi 9B | 8.8B | 5.8GB | 47-55 tok/s |
| Yi Coder 9B | 8.8B | 5.8GB | 47-55 tok/s |
Popular models small enough for this card at Q4, one per family. Speed is left blank for mixture-of-experts models, where a bandwidth estimate is not reliable enough to publish.
Choosing a card for AI? Compare every GPU for local AI, including setups that pool the memory of two or more cards.
Across generations
Where the Radeon RX 9060 XT 8 GB sits in AMD’s lineup — the generation before and after.
How the Radeon RX 9060 XT 8 GB compares
Similar cards worth a look, based on live prices in Germany and 1440p gaming performance. Open a card for its full spec sheet.
